B&C Speacker DE 12-16 Driver di Ricambio Originale FBT MAXX 4A - Montarbo AS-105

Prezzo di listino: 81.25
65.00
Risparmia: 16.25 (20%)
DE 12-16
Disponibile
+
9.90
di solito consegnata in 24-48 ore da Corriere espresso al tuo indirizzo

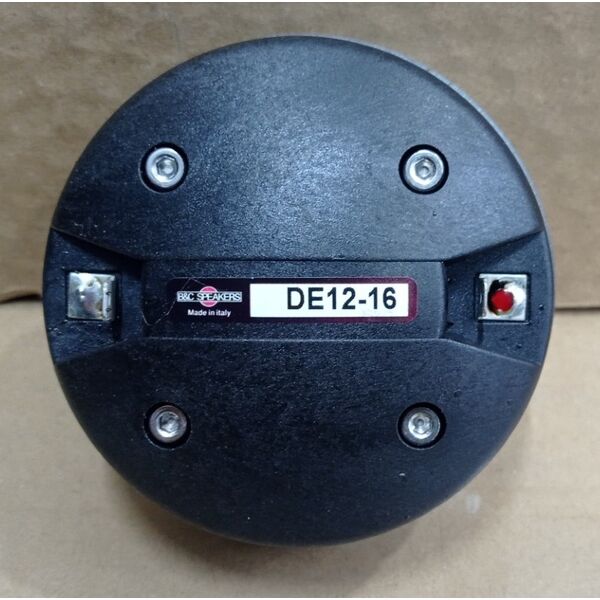

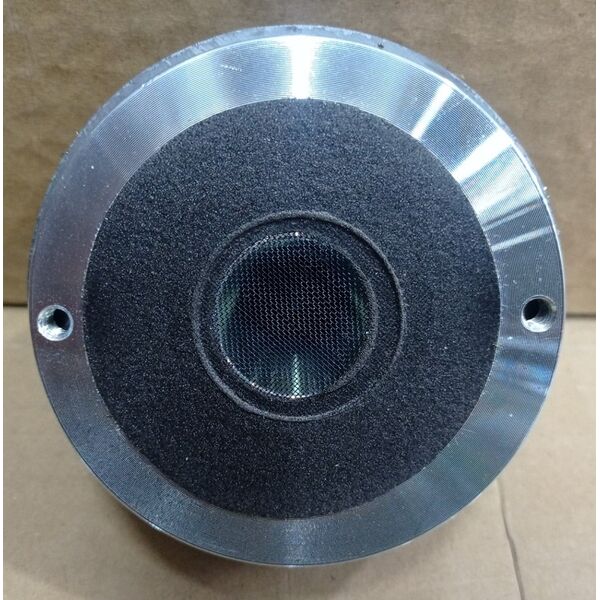

B&C Speacker DE 12-16 Driver di Ricambio Originale FBT MAXX 4A - Montarbo AS-105

50 W continuous program power capacity
1" horn throat diameter
36 mm (1.4 in) aluminium voice coil
Polyester diaphragm
1500 - 18000 Hz response
106 dB sensitivity

General
Product type Compression driver
Brand B&C Speakers
Reference DE12
Product code DRV01216
Informations
Nominal impedance 16 ohm
Dimensional category 3.5 inch
Manufacturer sensitivity 106 dB
Nominal power handling 20 W
Bandwidth 1500÷18000 Hz
Recommended min cutoff frequency 2200 Hz
Exit dimension 1.0 inch
Fundamental parameters
Le 0.19 mH


Datas
Flux density 1.45 T

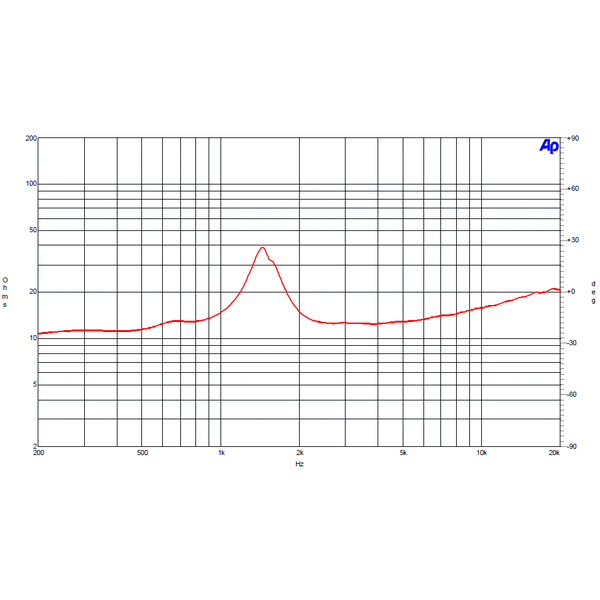

Zmin 10.9 ohm
Weight ~1 kg

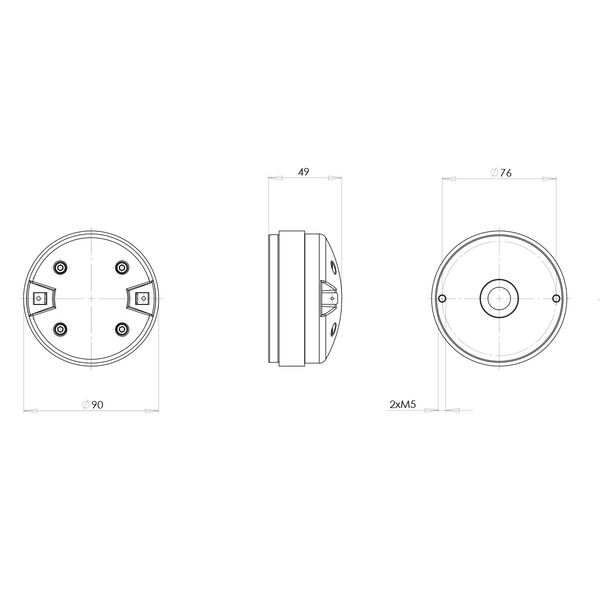

Dimensions
Voice coil diameter 1.4 inch
Outside diameter 90 mm
Depth 49 mm
Driver dimensions mouting holes 5.0 mm
Driver mounting system 2 points on diameter 76 mm
Shape & Materials
Front chape Cylindrical
Magnet type Ferrite
Winding material Aluminium
Diaphragm material Polyester
