B&C Speacker DE 82 (Montarbo AS 26) Driver a Compressione 3" 160W 8 Ohm 107 dB

B&C DE82 Ricambio Originale Montarbo AS-26

Driver Originale B&C Speacker Made in Italy, utilizzato in diverse Casse di fascia alta quali: Montarbo, FBT, RCF ecc.

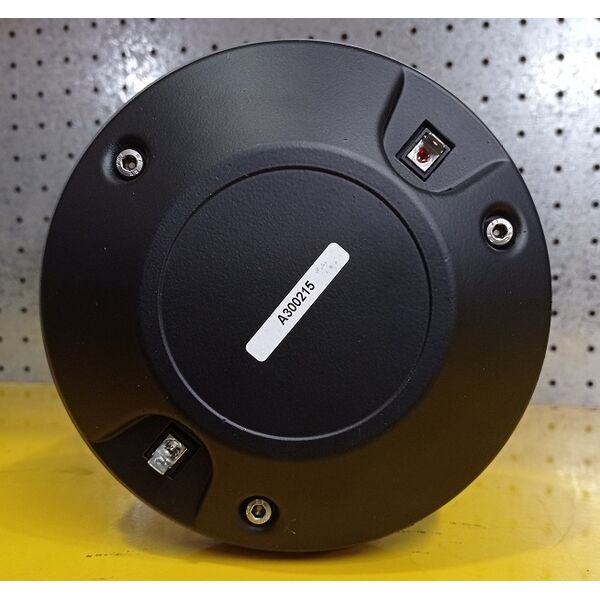

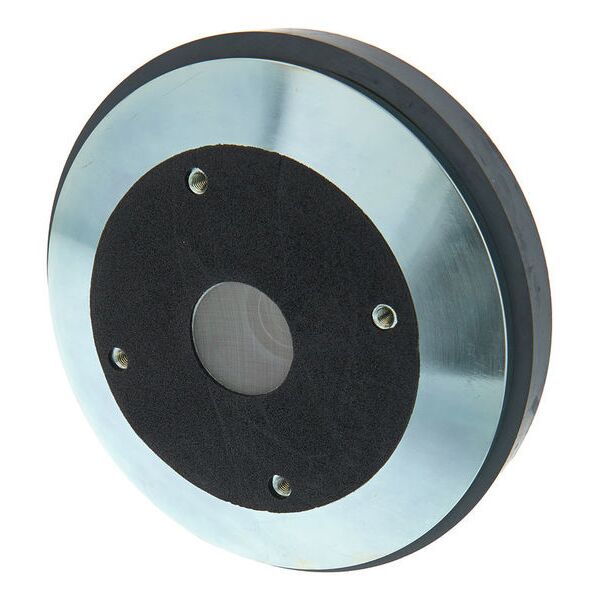

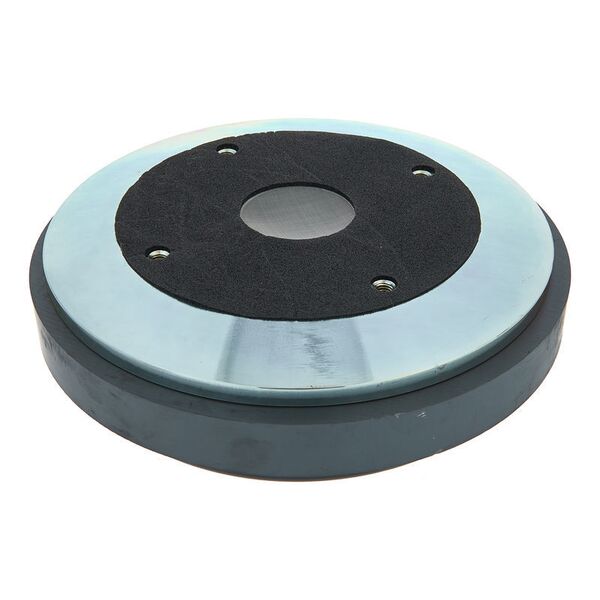

Fotografie reali del prodotto in vendita, codificato con codice Montarbo.

1.4 inch high frequency compression driver. The particular mylar/titanium diaphragm using a 3 inch edgewound flat aluminium wire voice coil and a optimized high energy ceramic magnet assembly using a copper shorting ring assembly produce smooth response and excellent sonic properties.

Features:

• 160 W continuous program power capacity
• 1.4" horn throat diameter
• 75 mm (3 in) aluminium voice coil
• Titanium diaphragm

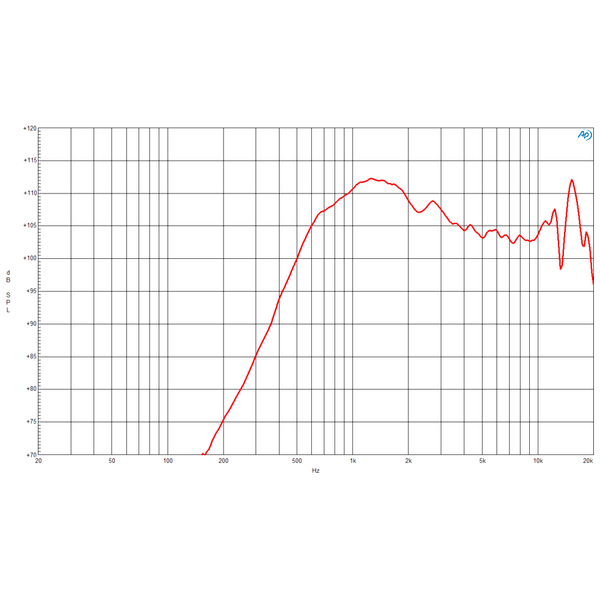

• 500 - 18000 Hz response
• 108 dB sensitivity
• Shorting copper cap for extended HF response

Specifications:

• Throat Diameter 36 mm (1.4 in)
• Nominal Impedance 8 Ohm
• Minimum Impedance 8 Ohm
• Power Handling (1000 –20000 Hz)
• Nominal 80 W
• Continuous Program 160 W
• Sensitivity (1W/1m) 107 dB
• Frequency Range 0.5 – 18 kHz
• Recommended Crossover 1000 Hz
• Voice Coil Diameter 75 mm (3 in)
• Winding Material Aluminium
• Inductance 0.14 mH
• Diaphragm Material Titanium
• Flux Density 1.8 T

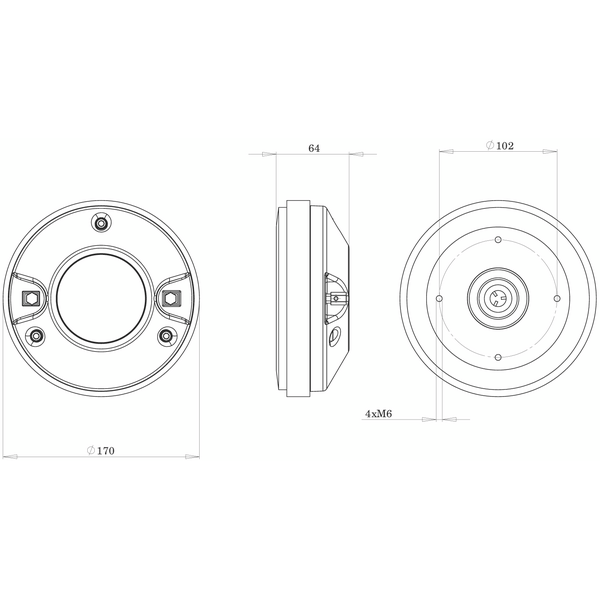

Mounting And Shipping Info:

• Four M6 holes 90° on 102 mm (4 in) diameter
• Overall Diameter 170 mm (6.7 in)
• Depth 67 mm (2.6 in)
• Net Weight (1 unit) 4.5 kg (9.9 lb)
