Save 20%

LaVoce WSF122.50 Woofer 300mm (12 pollici) 500W 8 Ohm

List price: 112.50
90.00
You save: 22.50 (20%)
Ask a question
WSF122.50
In stock
+

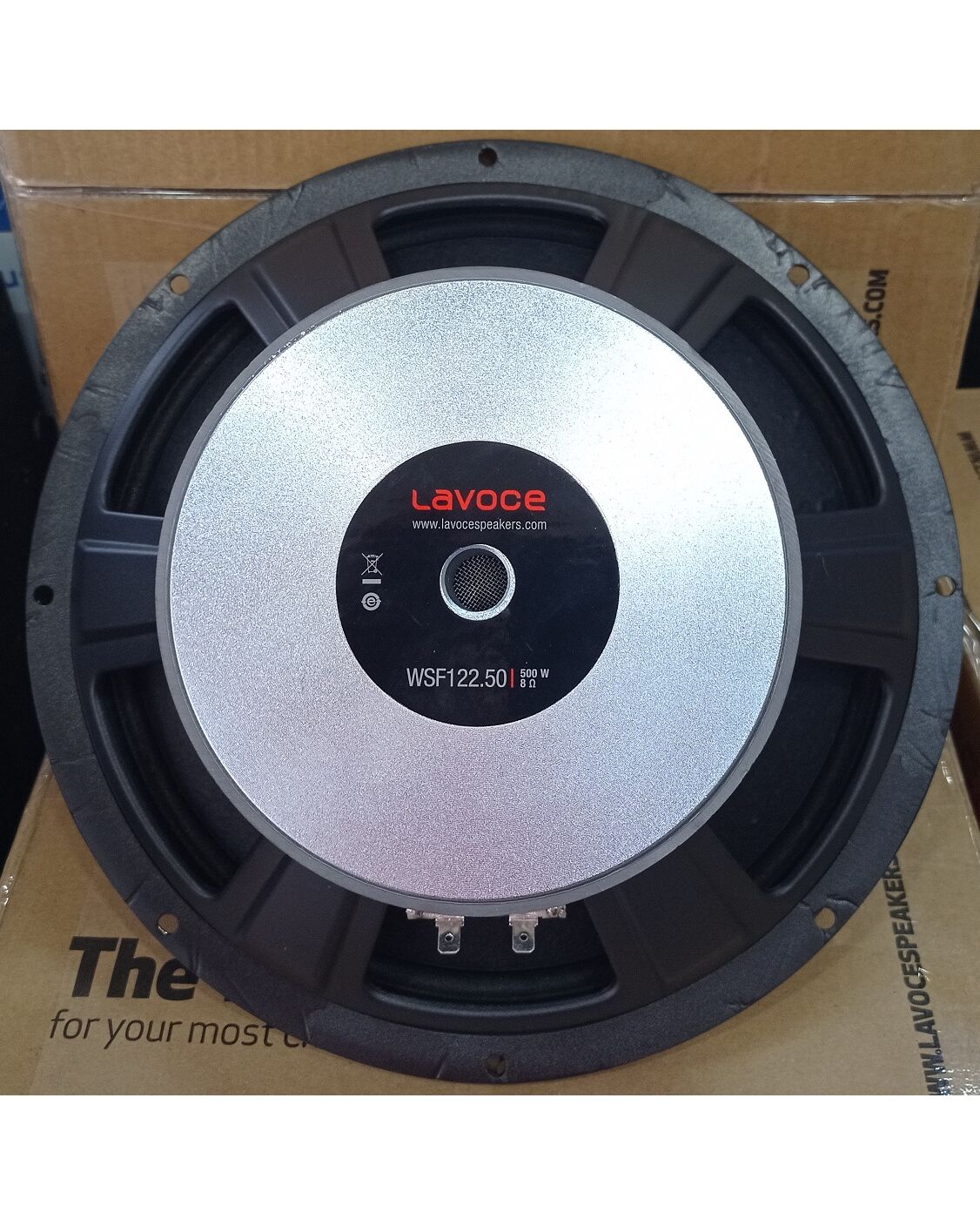

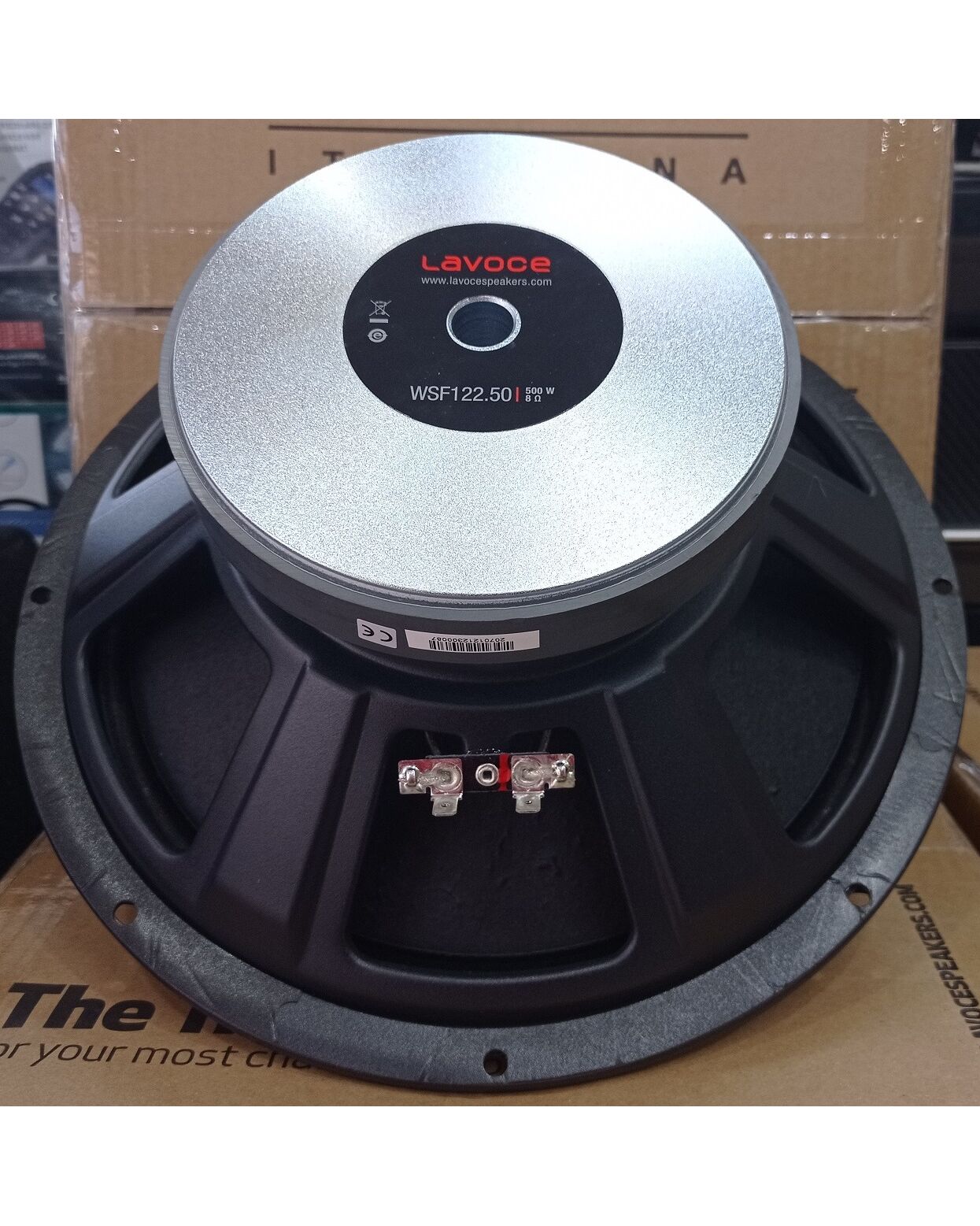

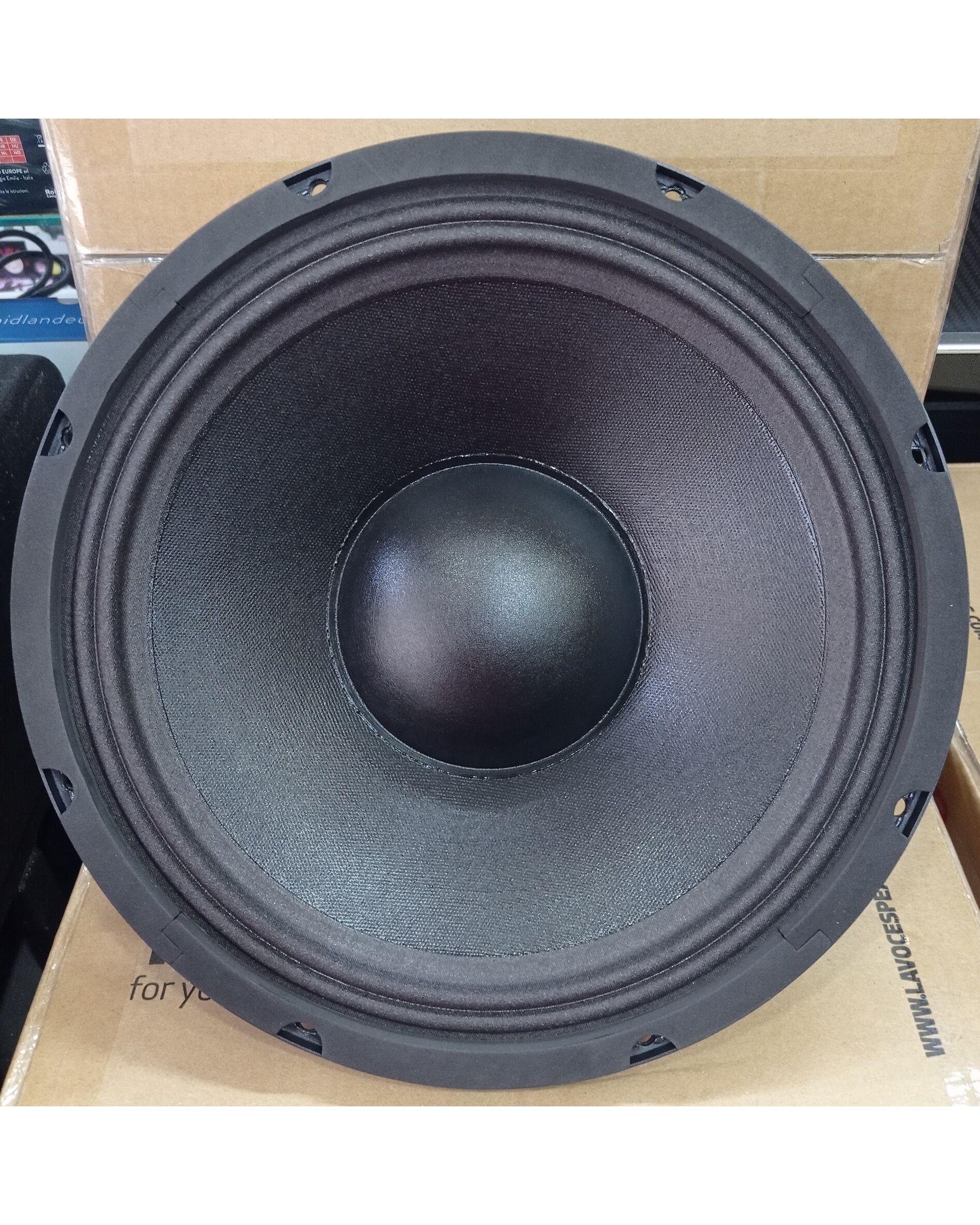

LaVoce WSF122.50 - Woofer 300mm (12 pollici) 500W 8 Ohm


LaVoce codice 70R11120

Features

- 2.5 INCH COPPER VOICE COIL

- 97,5 dB/SPL SENSITIVITY

- 500 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN



General Specifications



Nominal diameter mm (in) 300 (12)

Nominal Impedance Ohm 8

Minimum impedance Ohm 6,4

Program power W 500

AES Power rating W 250

Sensitivity dB 97,5

Frequency range Hz 50 ÷ 3000

Voice coil diameter mm (in) 65 (2.5)

Chassis material Steel

Magnet material Ferrite

Magnet dimensions OD x ID x h mm (in) 160 x 70 x 20 (6.3 x 2.76 x 0.79)

Coil material Copper

Former material Glass Fiber

Cone material Water Proof Treated Paper

Surround material Polycotton

Xmax mm (in)  4,7 (0.18)

Xmech mm (in) 8,8 (0.35)

Gap height mm (in) 8,2 (0.32)

Voice coil winding height mm (in) 13,4 (0.53)

Driver displacement volume l (ft³) 2 (0.07)


Small Signal Parameters

DC resistance Ohm 5,5

Resonance frequency Hz 50

Moving mass g (oz) 58,4 (2.05)

Compliance mm/N 0.18

Force factor N/A 17,1

Mechanical Q-factor 5,5

Electrical Q-factor 0,34

Total Q-factor 0,32

Equivalent air volume l (ft3) 72 (2.54)

Voice coil inductance mH 0,76

Diaphragm area cm2 (in.2) 531 (82.31)

Reference efficiency 2,3%



Shipping Information

Net weight kg (lb) 4,7 (10.3)

Multipack size W x D x H mm x mm x mm (in x in x in) 356 x 356 x 173 (14 x 14 x 6.8)

Multipack weight kg (lb) 6 (13.3)
