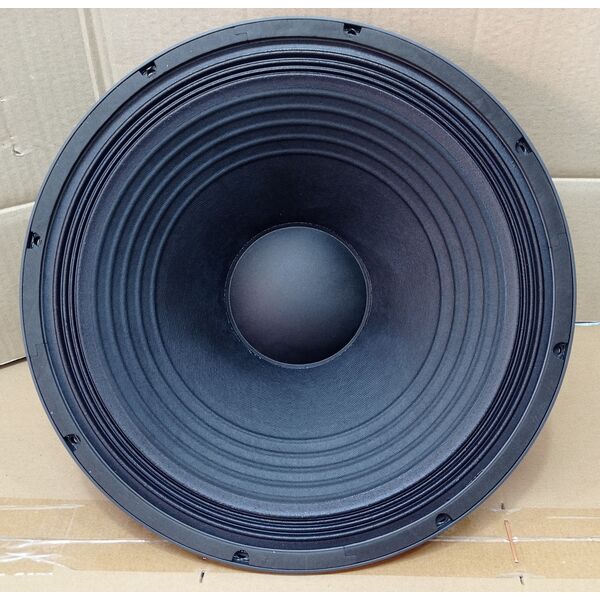

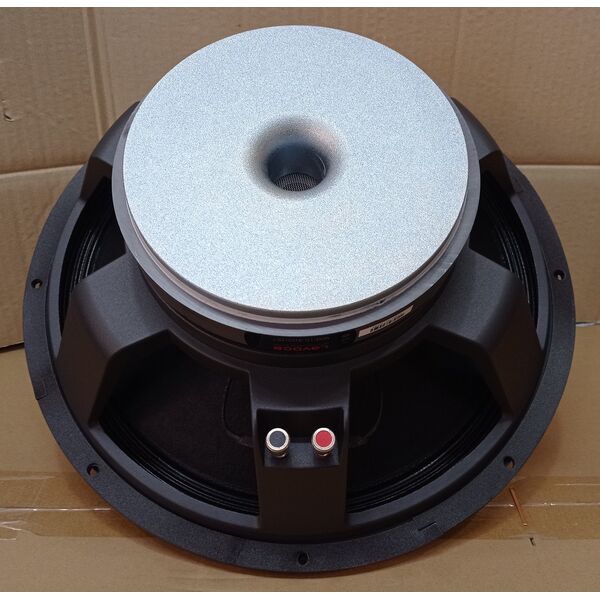

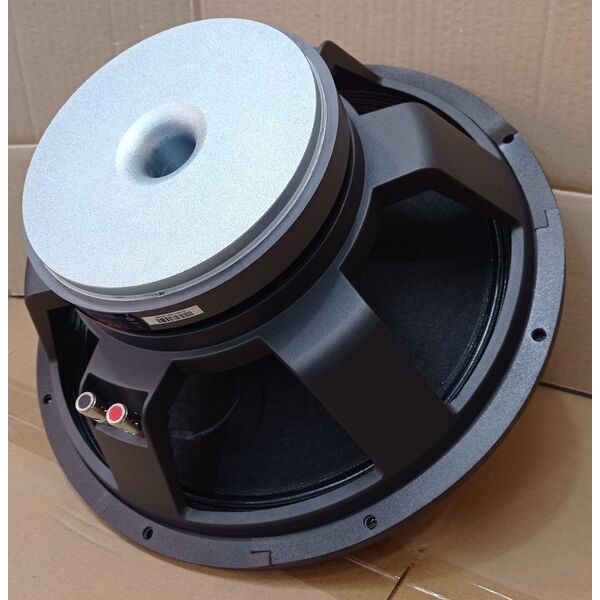

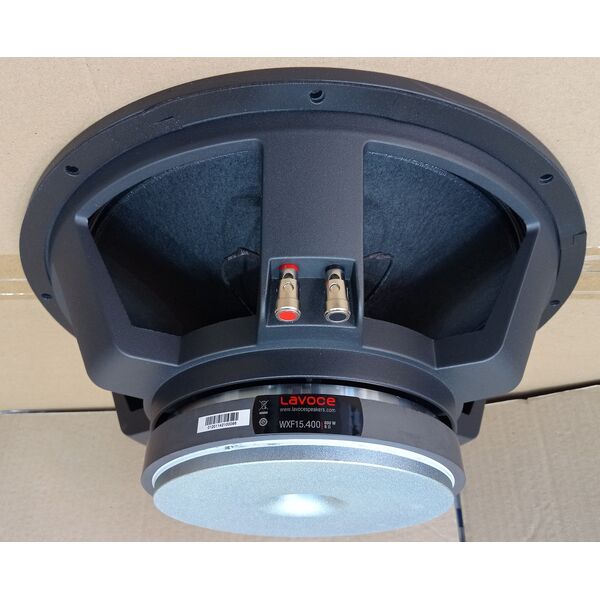

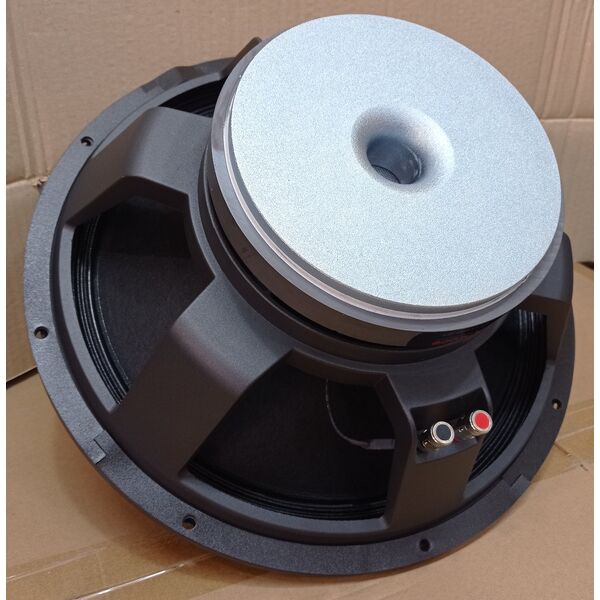

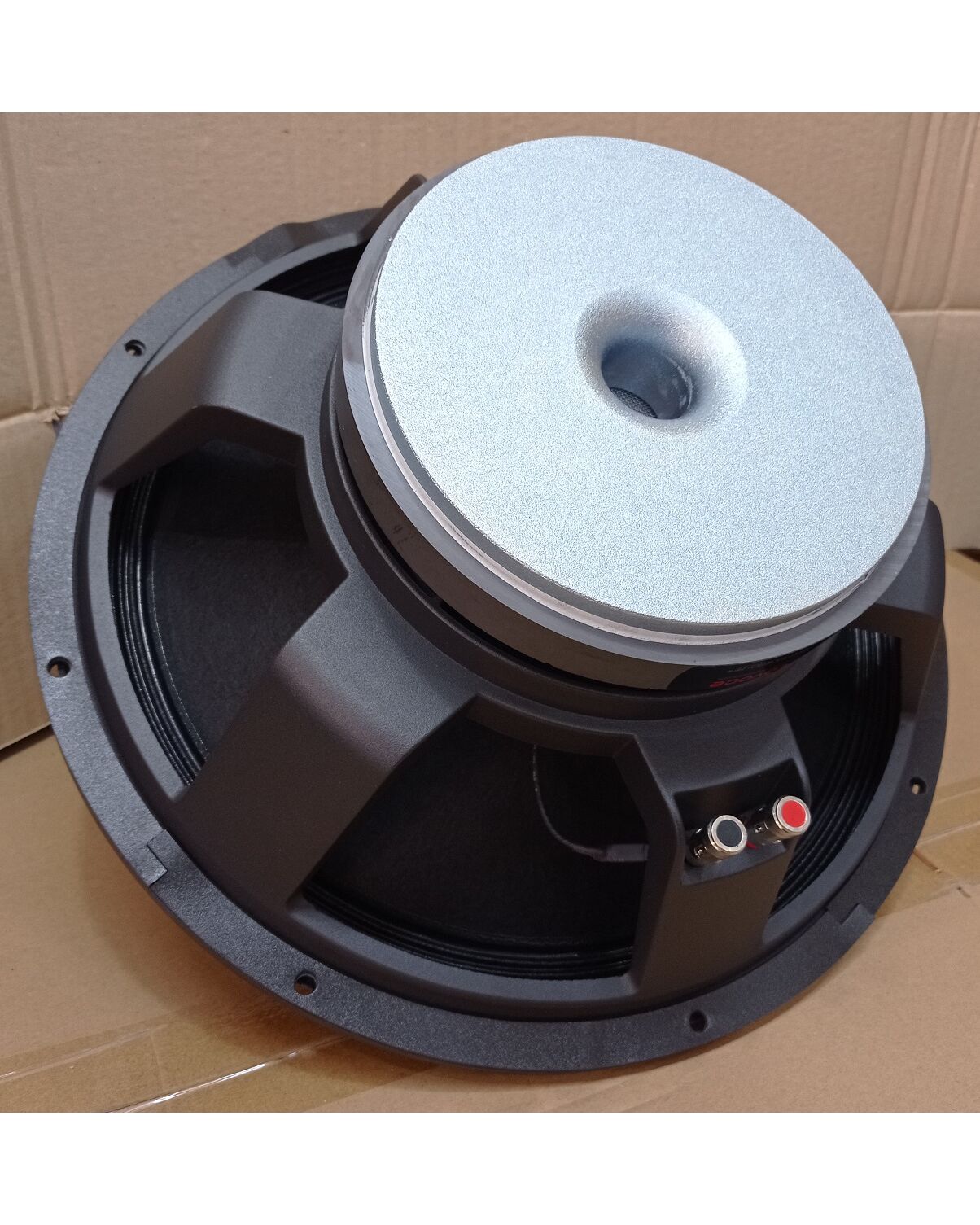

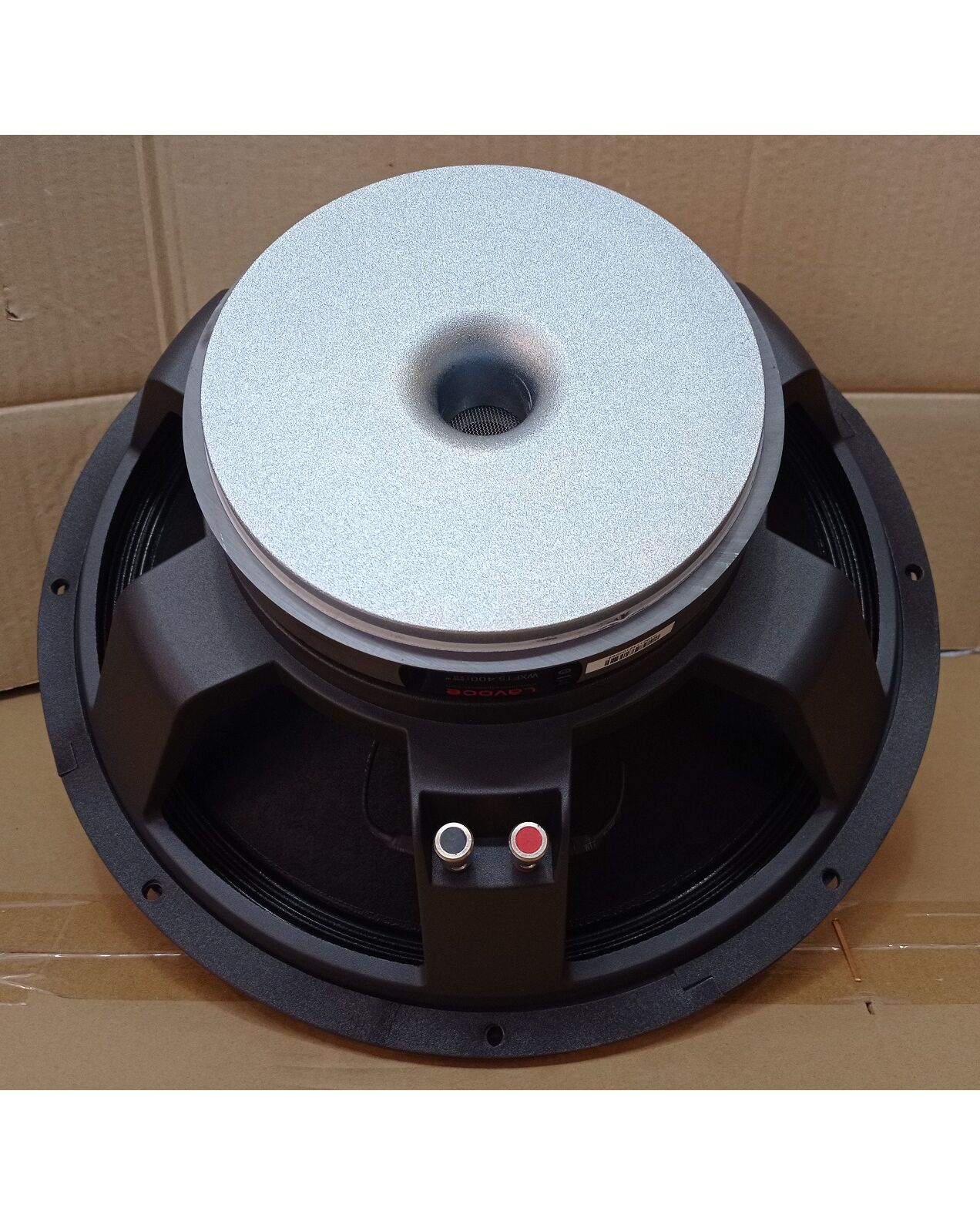

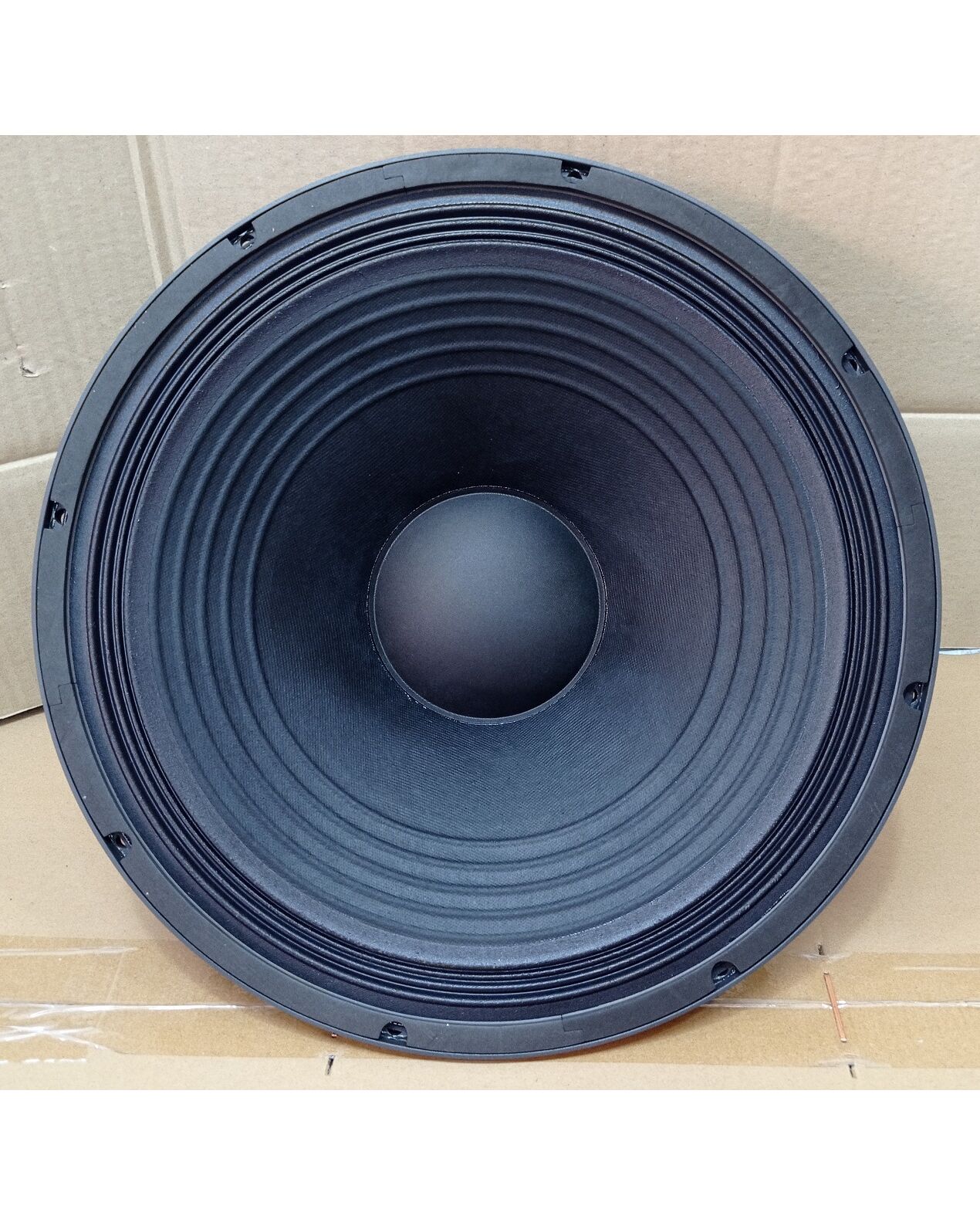

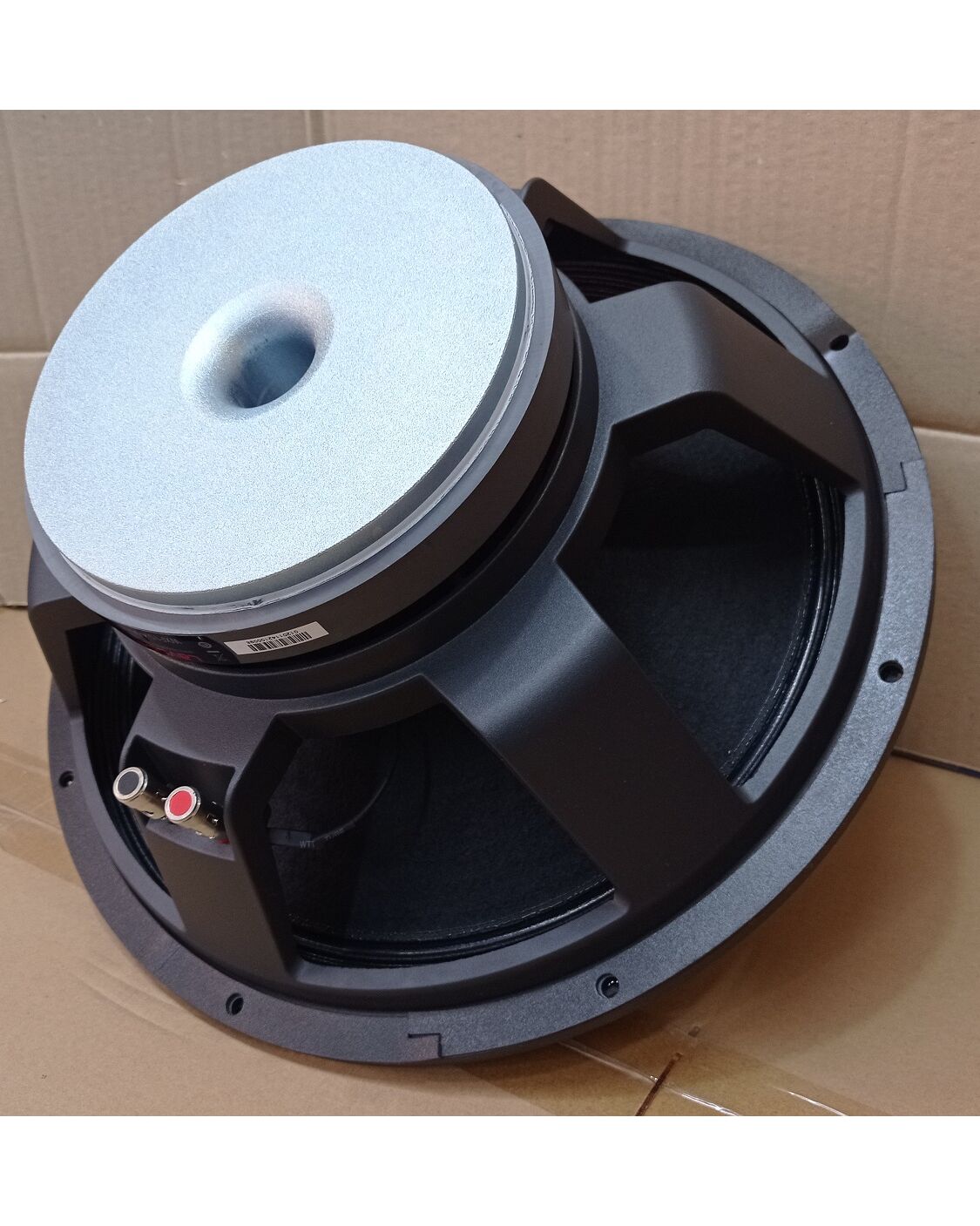

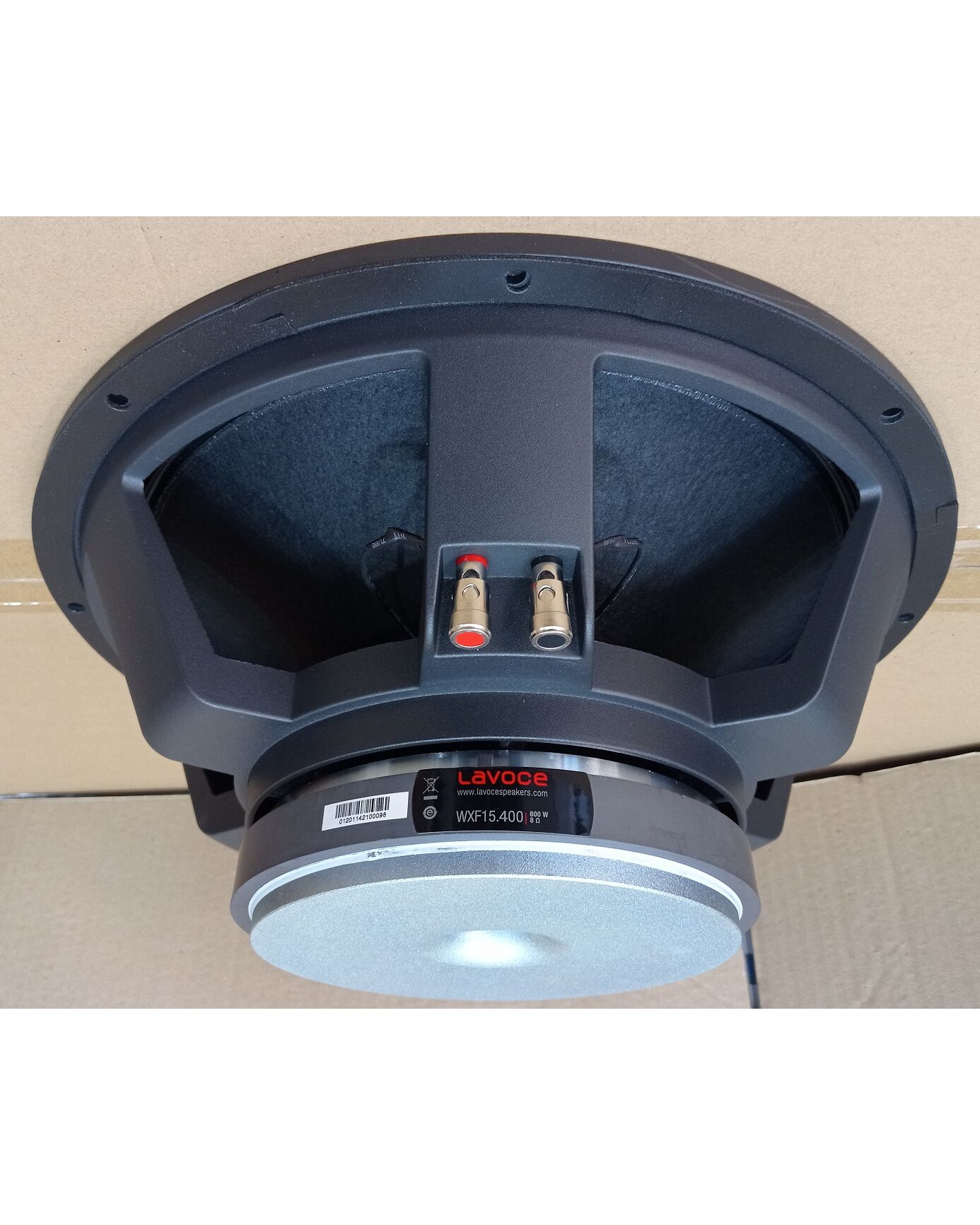

LaVoce Italiana WXF15.400 - Woofer 15" 800w 8 Ohm
GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
380 (15)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
6,5
Program power
W
800
AES Power rating
W
400
Sensitivity
dB
99,5
Frequency range
Hz
50 ÷ 3000
Voice coil diameter
mm (in)
75 (3)
Chassis material
Aluminum
Magnet material
Ferrite
Magnet dimensions OD x ID x h
mm (in)
190 x 82 x 20 (7.48 x 3.23 x 0.79)
Coil material
CCAW
Former material
Glass Fiber
Cone material
Water Resistant Treated Paper
Surround material
Polycotton
Xmax
mm (in)
6,1 (0.24)
Xmech
mm (in)
11,6 (0.45)
Gap height
mm (in)
10 (0.39)
Voice coil winding height
mm (in)
17,1 (0.67)
Driver displacement volume
l (ft³)
4,26 (0.15)
Recommended Enclosure
l (ft³)
115 (4.1)
Recommended Tuning
Hz
45
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
5,6
Resonance frequency (Fs)
Hz
35
Moving mass (Mms)
g (oz)
82,8 (2.92)
Compliance (Cms)
mm/N
0,248
Force factor (Bxl)
N/A
19,4
Mechanical Q-factor (Qms)
4,09
Electrical Q-factor (Qes)
0,27
Total Q-factor (Qts)
0,26
Equivalent air volume (Vas)
l (ft3)
257 (9.08)
Voice coil inductance (Le)
mH
0,99
Diaphragm area (Sd)
cm2 (in.2)
855,3 (132.6)
Reference efficiency (Eta 0)
3,92
Efficiency bandwidth product (EBP)
