Risparmia 20%

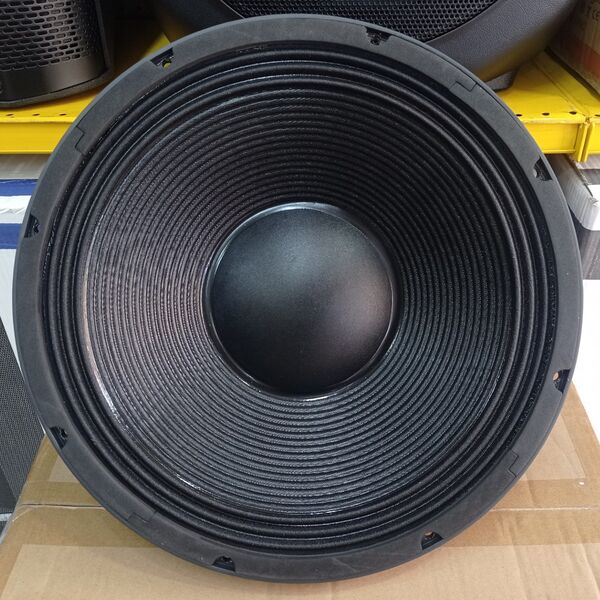

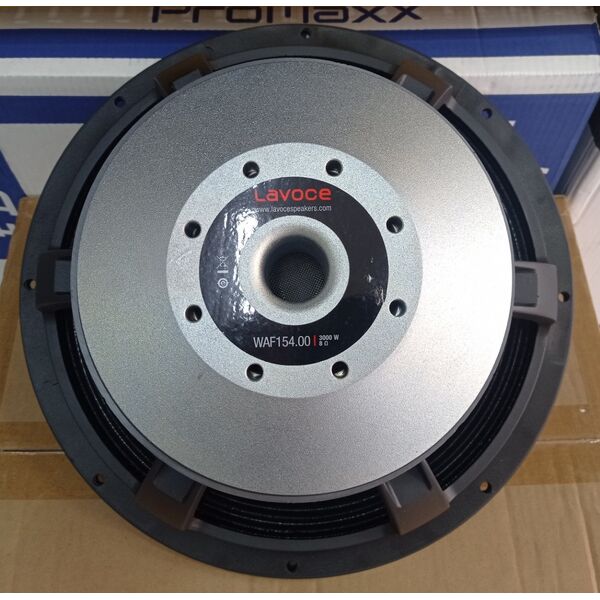

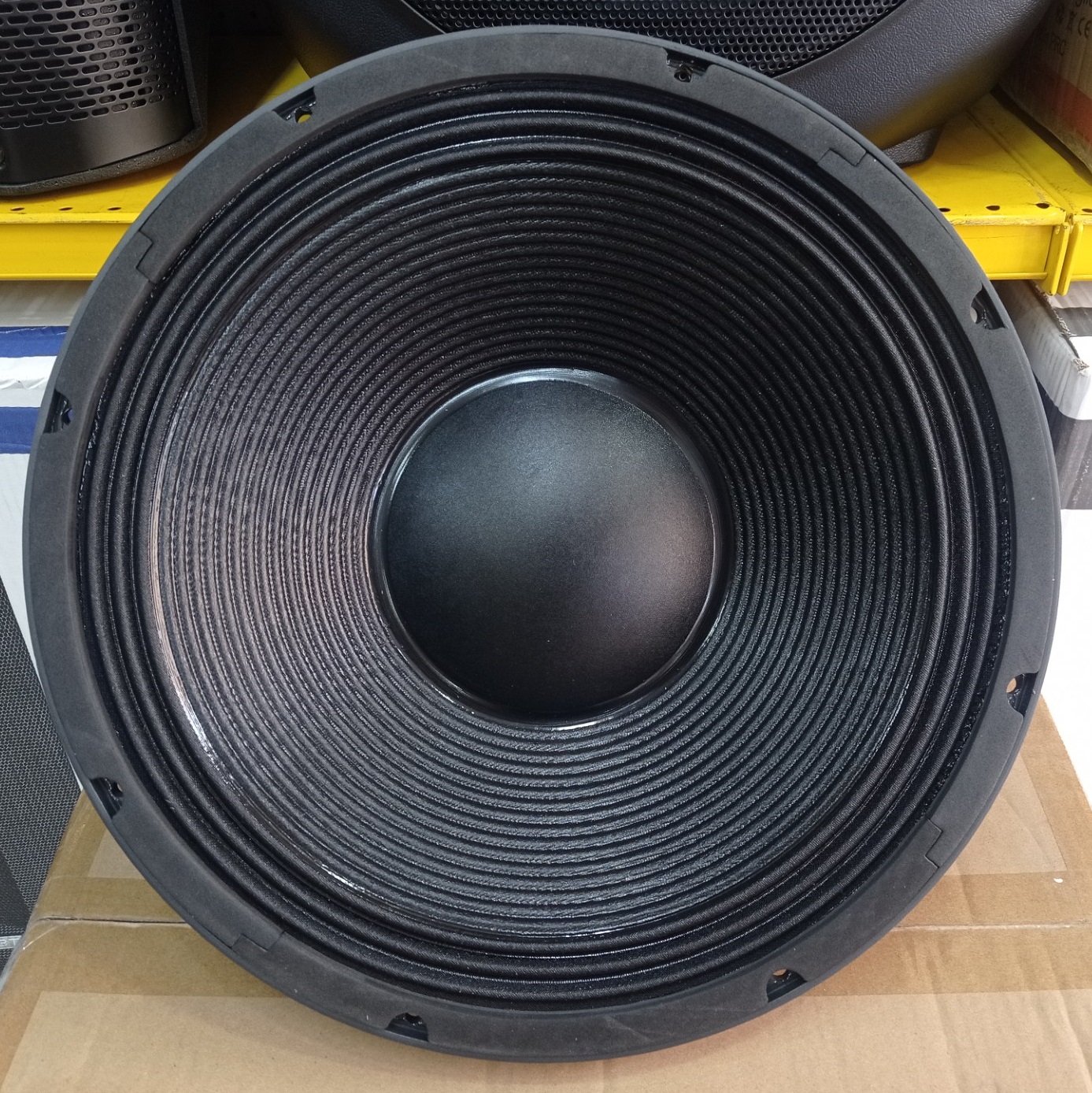

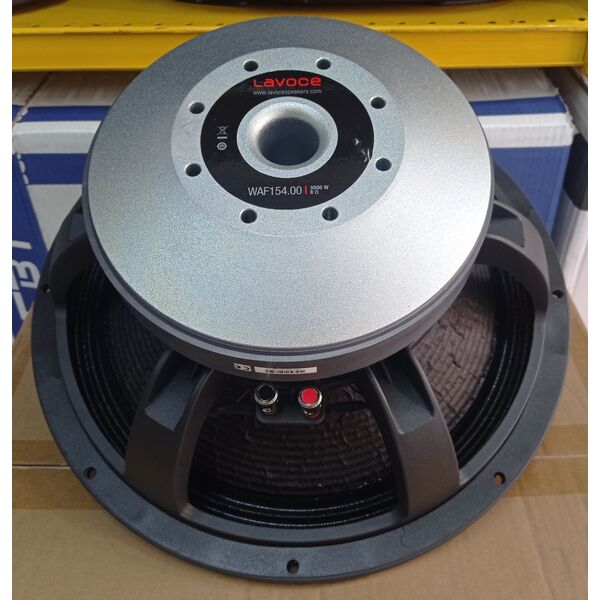

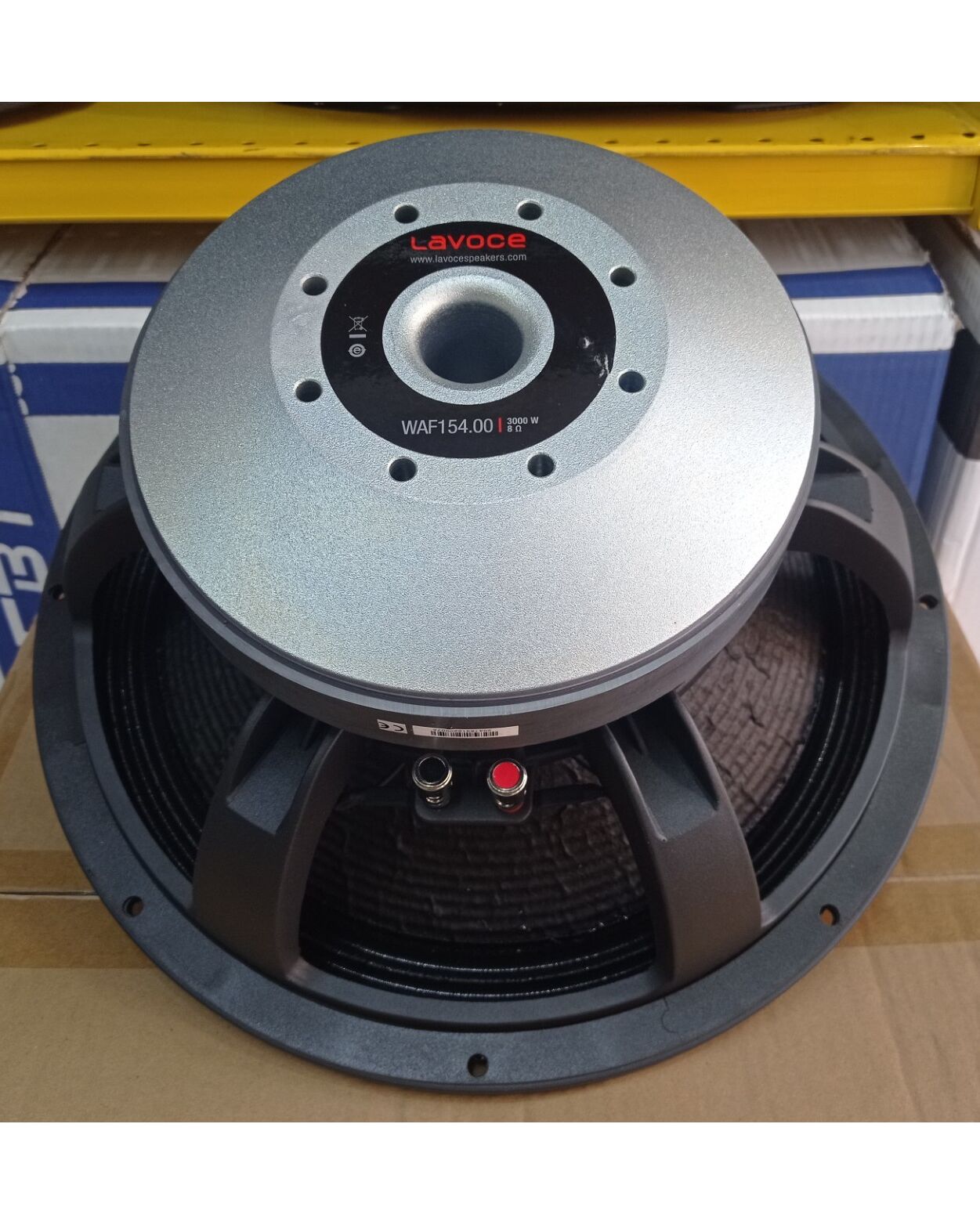

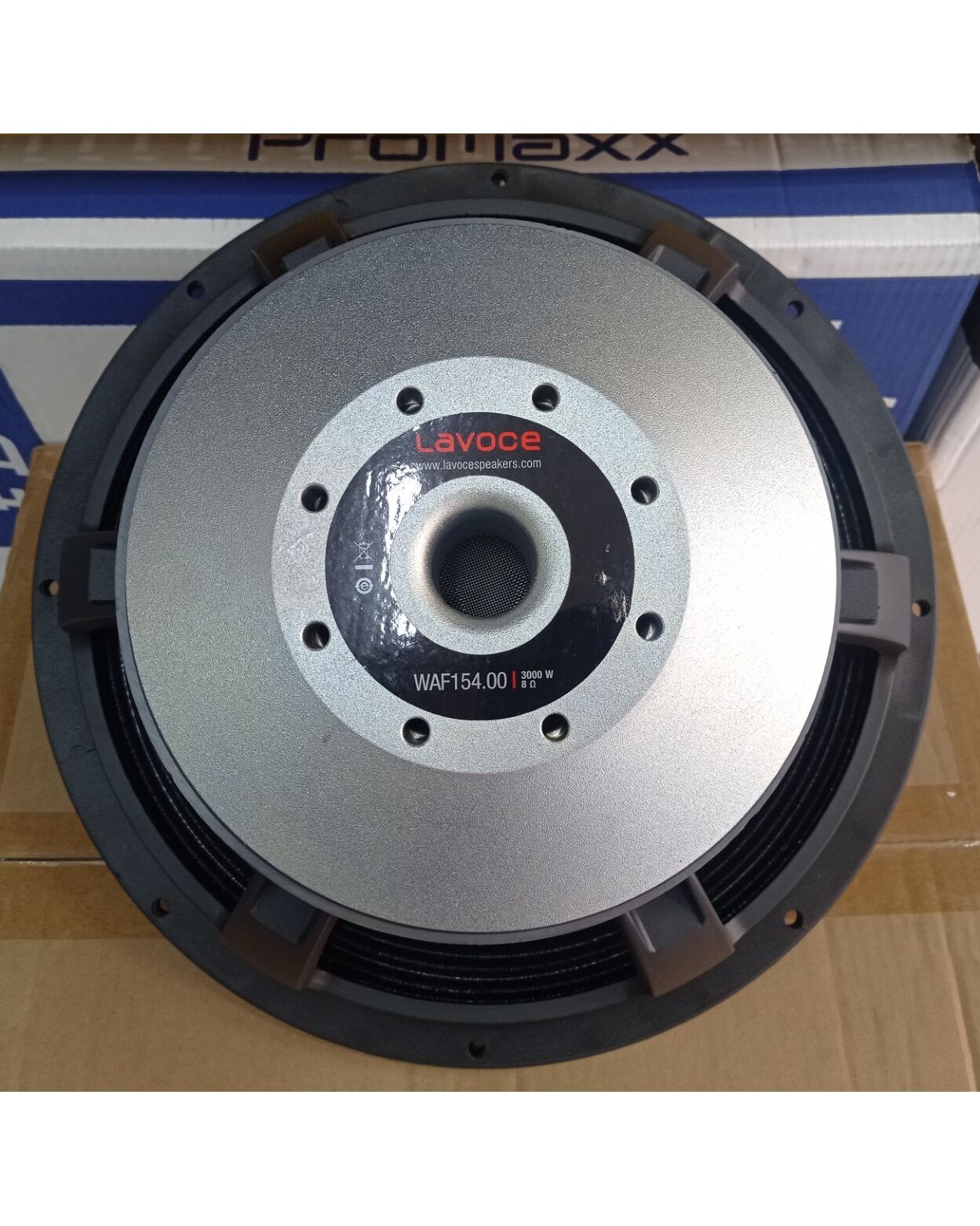

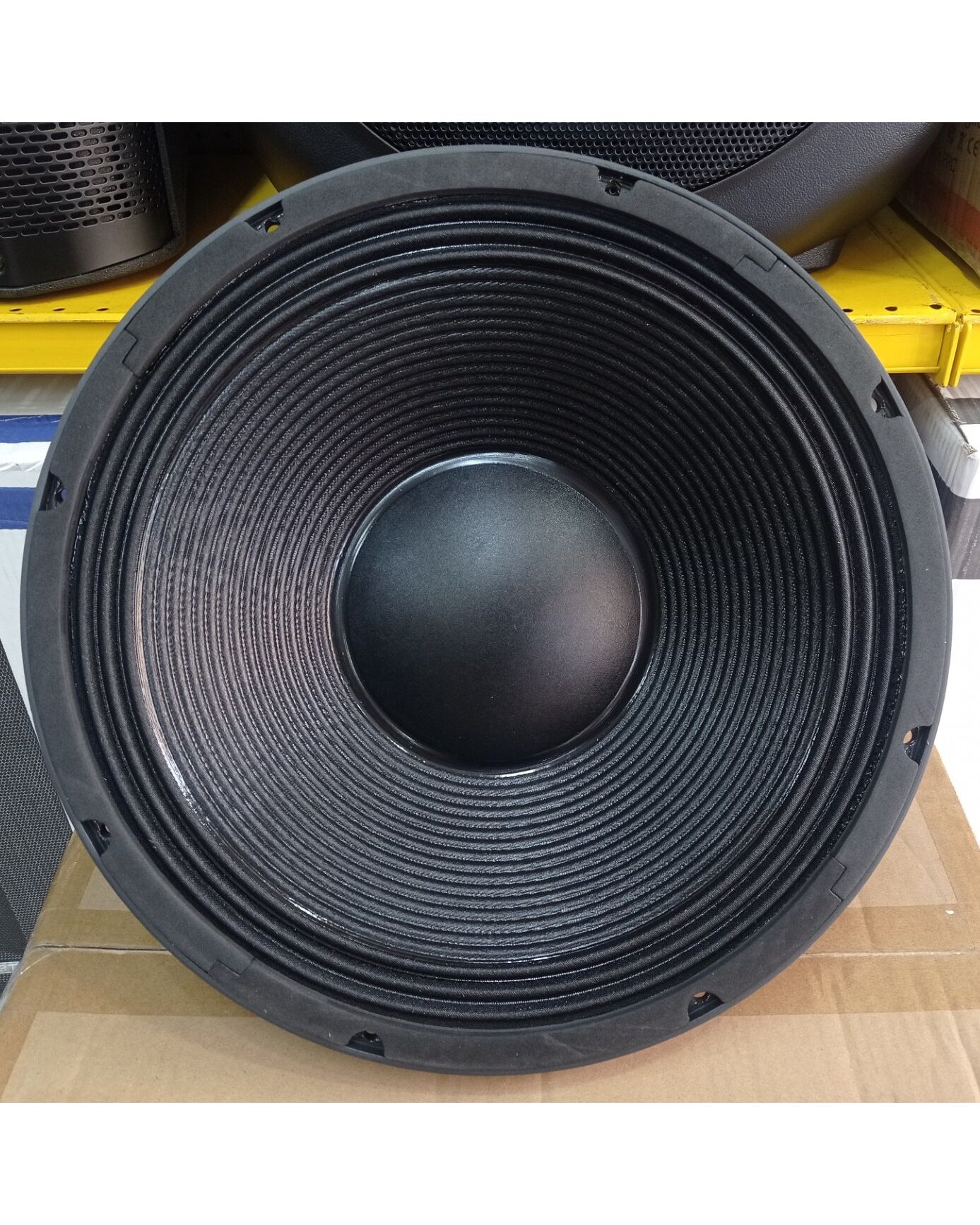

LaVoce WAF154.00 Subwoofer 15" 380mm (15 pollici) 3000W 8 Ohm

Prezzo di listino: 335.00
269.00
Risparmia: 66.00 (20%)
WAF154.00
Disponibile
+
14.90
di solito consegnata in 24-48 ore da Corriere espresso al tuo indirizzo

LaVoce WAF154.00 - Subwoofer 15" 380mm (15 pollici) 3000W 8 Ohm

LaVoce codice 70R10152

Features

- 4 INCH COPPER VOICE COIL

- 96 dB/SPL SENSITIVITY

- 3000 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED FERRITE MOTOR AND SUSPENSIONS

- 43 mm (1.7 INCH) PEAK TO PEAK EXCURSION

- OPTIMIZED COOLING SYSTEM

- ALUMINIUM DEMODULATING RING

- DOUBLE SILICON SPIDER

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

- TRIPLE ROLL SURROUND



General Specifications

Nominal diameter

mm (in)

380 (15)

Nominal Impedance

Ohm

8

Minimum impedance

Ohm

8

Program power

W

3000

AES Power rating

W

1500

Sensitivity

dB

96

Frequency range

Hz

40 ÷ 1000

Voice coil diameter

mm (in)

100 (4)

Chassis material



Aluminium

Magnet material



Ferrite

Magnet dimensions OD x ID x h

mm (in)

220 x 115 x 30 (8.66 x 4.53 x 1.18)

Coil material



Copper

Former material



Glass fiber

Cone material



Water Proof Treated Paper

Surround material



Polycotton

Xmax

mm (in)

12,1 (0.48)

Xmech

mm (in)

21,4 (0.84)

Gap height

mm (in)

15 (0.59)

Voice coil winding height

mm (in)

31,7 (1.25)

Driver displacement volume

l (ft³)

5,4 (0.19)



Small Signal Parameters

DC resistance

Ohm

5,8

Resonance frequency

Hz

38

Moving mass

g (oz)

167 (5.89)

Compliance

mm/N

0,10

Force factor

N/A

27,3

Mechanical Q-factor



5,7

Electrical Q-factor



0,31

Total Q-factor



0,29

Equivalent air volume

l (ft3)

103 (3.64)

Voice coil inductance

mH

1,8

Diaphragm area

cm2 (in.2)

830 (128.65)

Reference efficiency



1,70%



Shipping Information

Net weight

kg (lb)

15,5 (34.1)

Multipack size W x D x H

mm x mm x mm (in x in x in)

438 x 438 x 230 (17.2 x 17.2 x 9.1)

Multipack weight

kg (lb)

17,8 (39.1)
