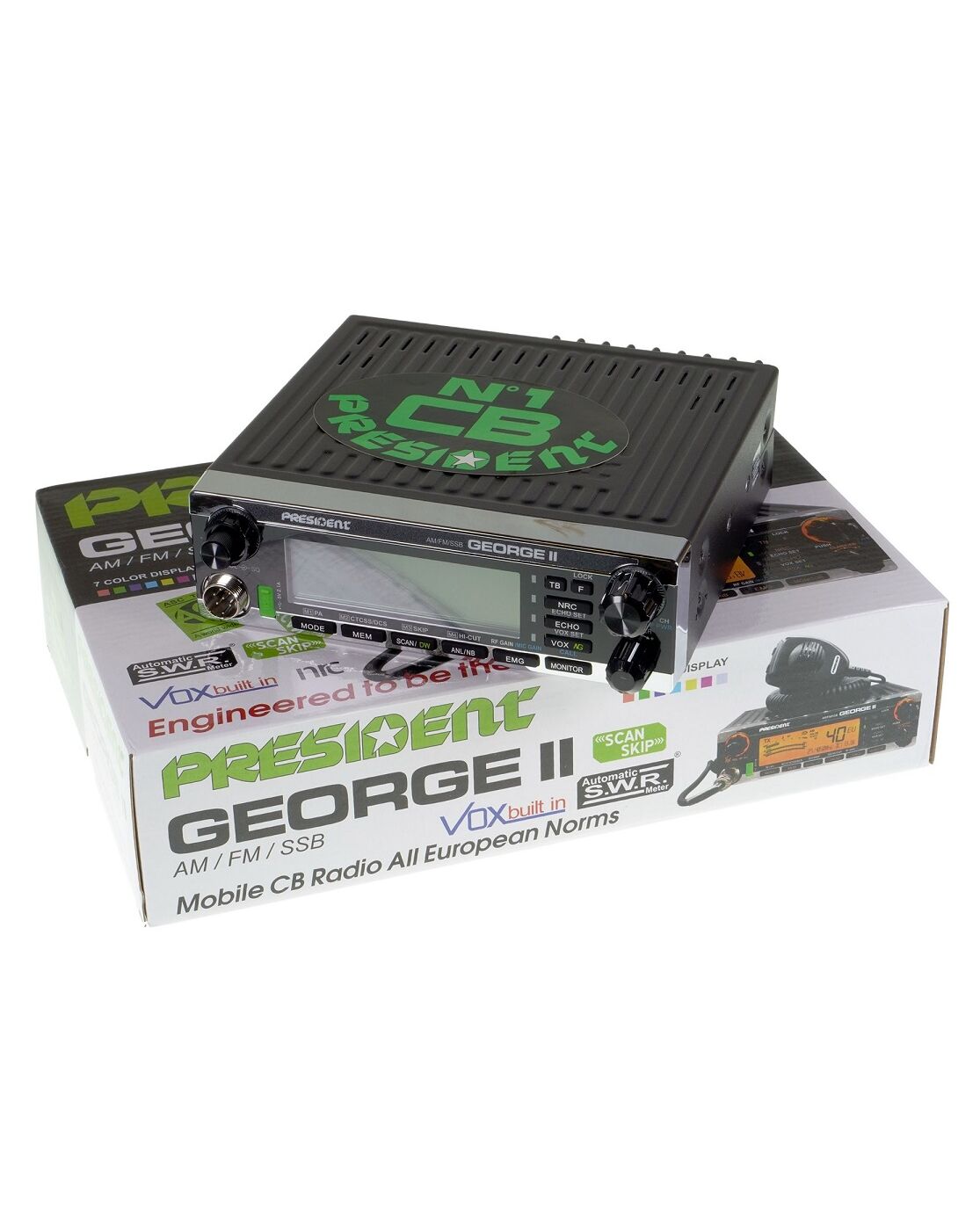

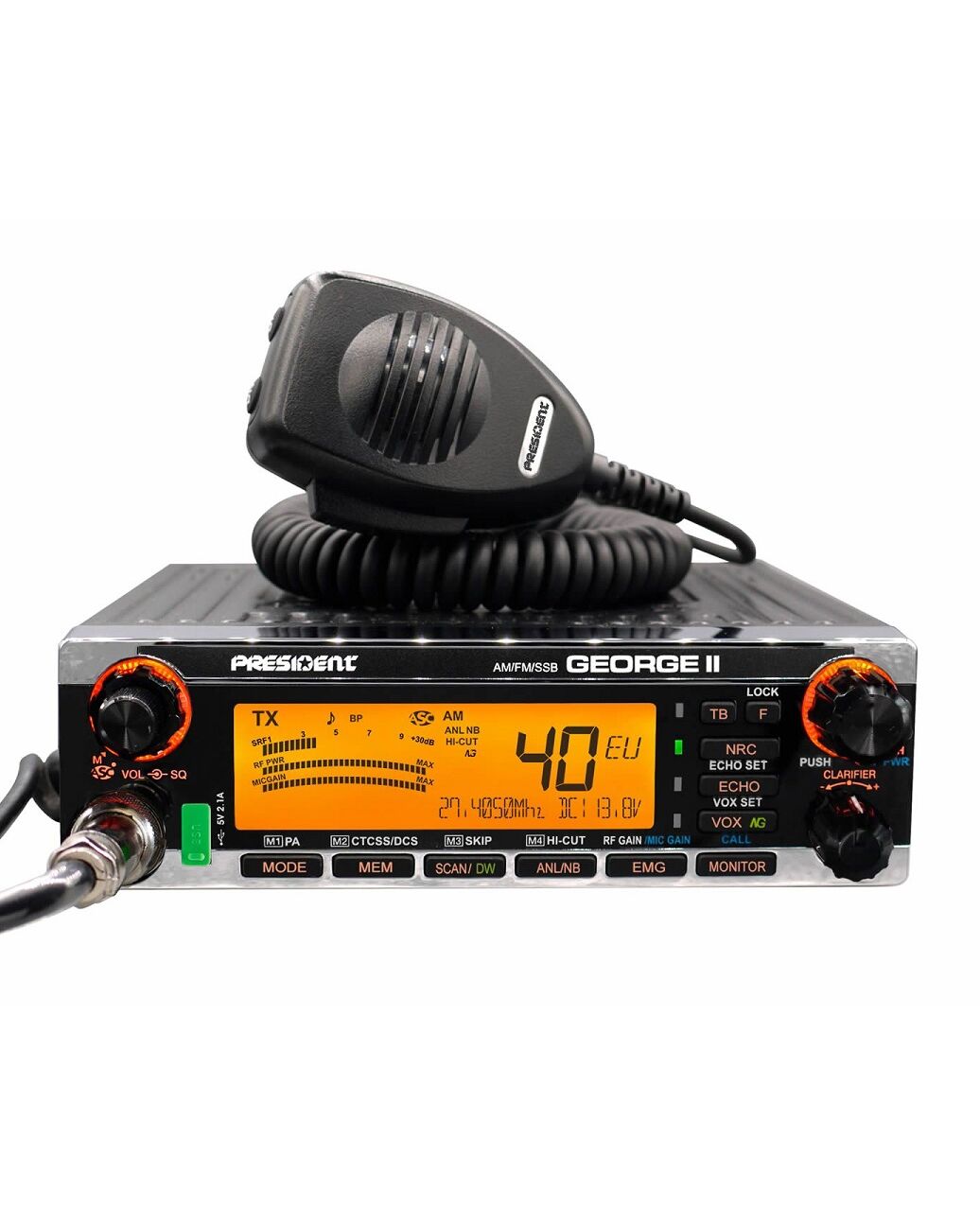

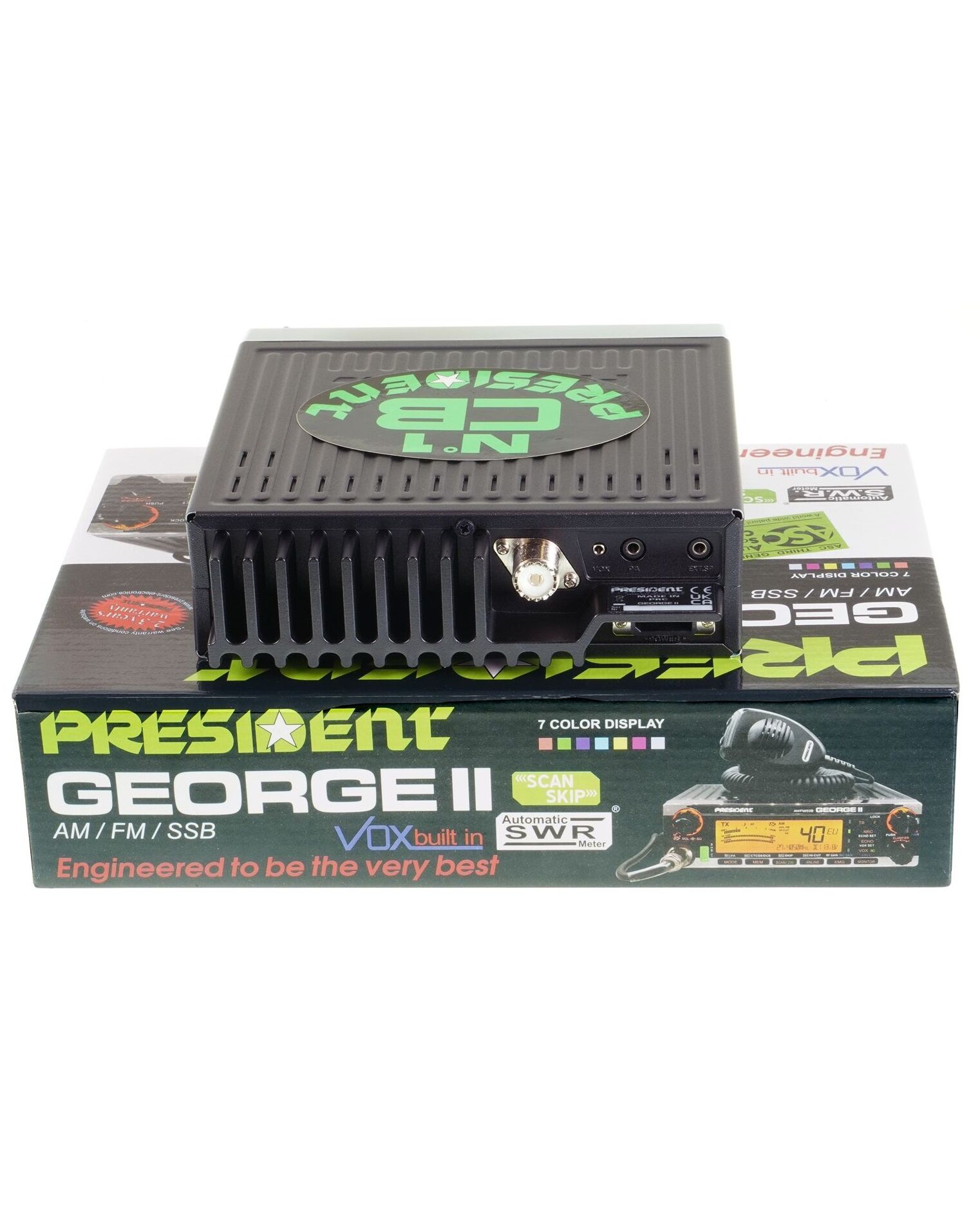

President George II - Ricetrasmettitore CB 40 CH Omologato AM/FM/SSB
Ricetrasmettitore Omologato per gli 11 metri, espandibile anche in 10 e 12 metri 10/35W nei paesi dove' consentito.
CARATTERISTICHE:
- 40 channels AM / FM / LSB / USB
- Channel selector rotary
- VFO mode (from 26.965 MHz to 27.405 MHz)
- RF Power
- Manual squelch
- ASC

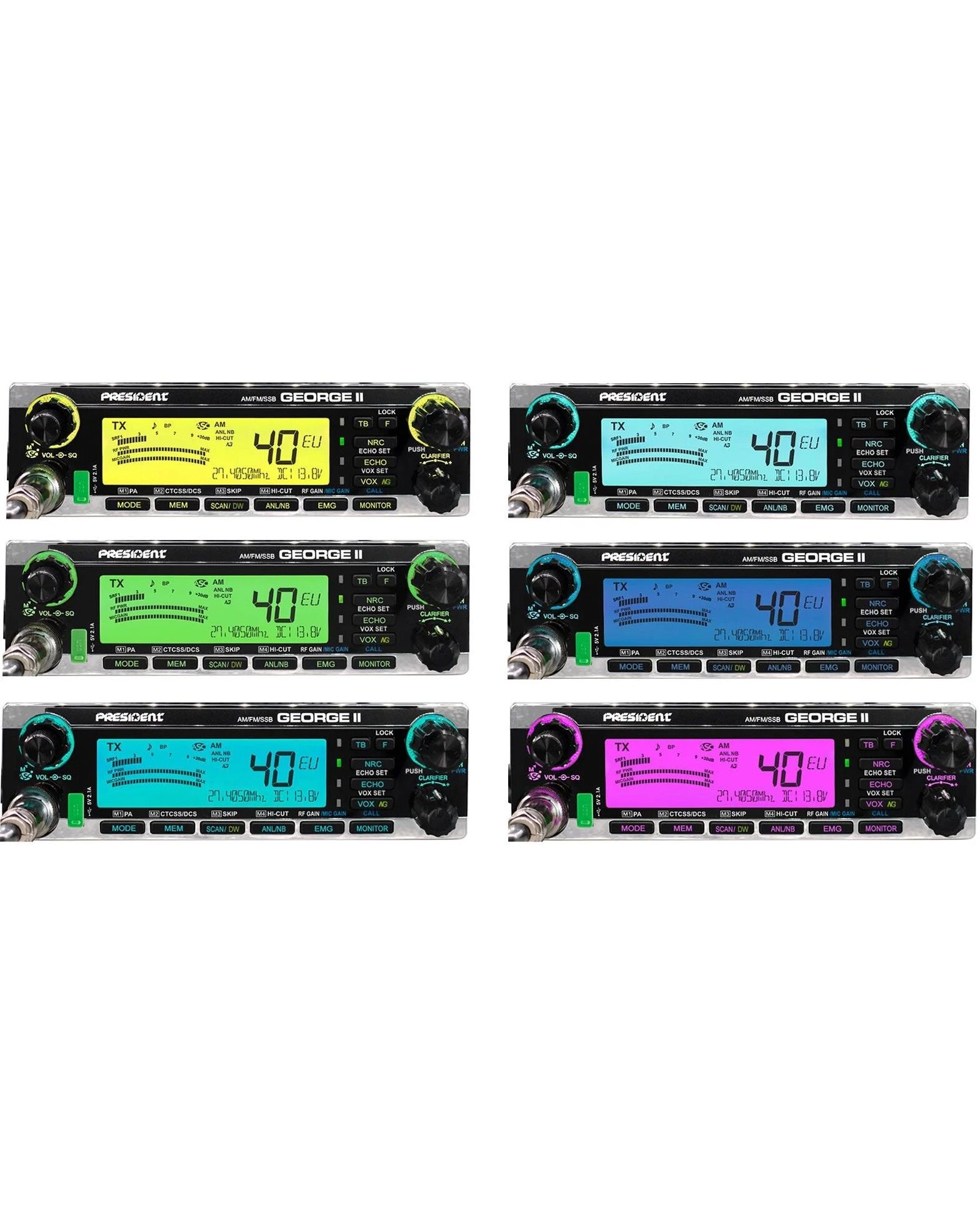

- Display LCD multifunction
- Frequencies display
- S-meter Digital
- Public address
- Talkback
- Vox
- Filter ANL
- Filter NB
- Filter HI-CUT
- NRC
- RF Gain
- Mike-Gain
- Clarifier
- Scan
- Memory 4
- Dimmer
- Key Beep
- Roger beep
- Dual watch
- Key locking
- SWR (Power Reading /SWR)
- CTCSS 38 tones
- DCS 104 codes
- 12 V
General
| Number of channels | : | 40 |
| Modulation modes | : | AM/FM/USB/LSB |
| Frequency ranges | : | from 26.965 MHz to 27.405 MHz |
| CTCSS | : | 38 tones |
| DCS | : | 104 codes |
| Antenna impedance | : | 50 ohms |
| Power supply | : | 12 V |
| Size | : | 185 (W) x 172 (D) x 56 (H) mm |
| Weight | : | 1.190 kg |

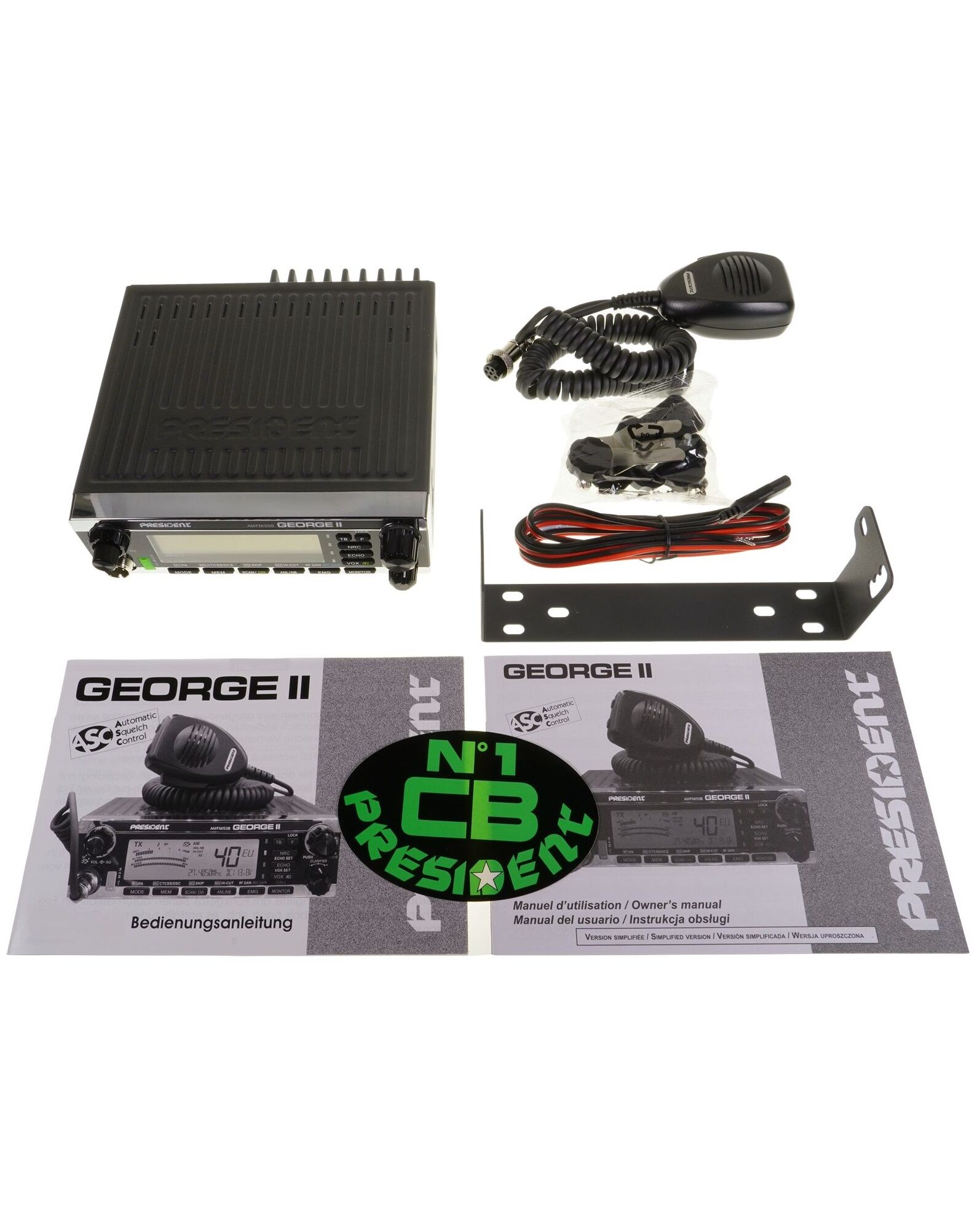

| Accessories supplied | : | power cord with fuse 1 microphone UP/DOWN and its hanger 1 mounting bracket with fixing screws |
Transmission
| Frequency allowance | : | +/- 200 Hz |
| Carrier power | : | 4 W AM / 4 W FM / 12 W PEP USB LSB |
| Transmission interference | : | less than 4 nW (-54 dBm) |
| Audio response | : | 300 Hz to 3 kHz AM/FM/USB/LSB |
| Emitted power in the adj. channel | : | less than 20 μW |
| Microphone sensitivity | : | 3.0 mV |
| Drain | : | < 5 A max. with modulation (13.2 V) |
| Modulated signal distortion | : | 2 % |
Reception
| Maxi. sensitivity at 20 dB sinad | : | 0.5 μV -113 dBm (AM) 0.35 μV -116 dBm (FM) 0.28 µV -118 dBm (USB LSB) |
| Frequency response | : | 300 Hz to 3 kHz AM/FM |
| Adjacent channel selectivity | : | 60 dB |
| Maximum audio power | : | 3 W |
| Squelch sensitivity | : | minimum : 0.2 μV - 120 dBm maximum : 1 mV - 47 dBm |
| Frequency image rejection rate | : | 60 dB |
| Intermediate frequency rej. rate | : | 70 dB |
| Drain | : |
200 ~ 600 mA max (13.2 V) |
