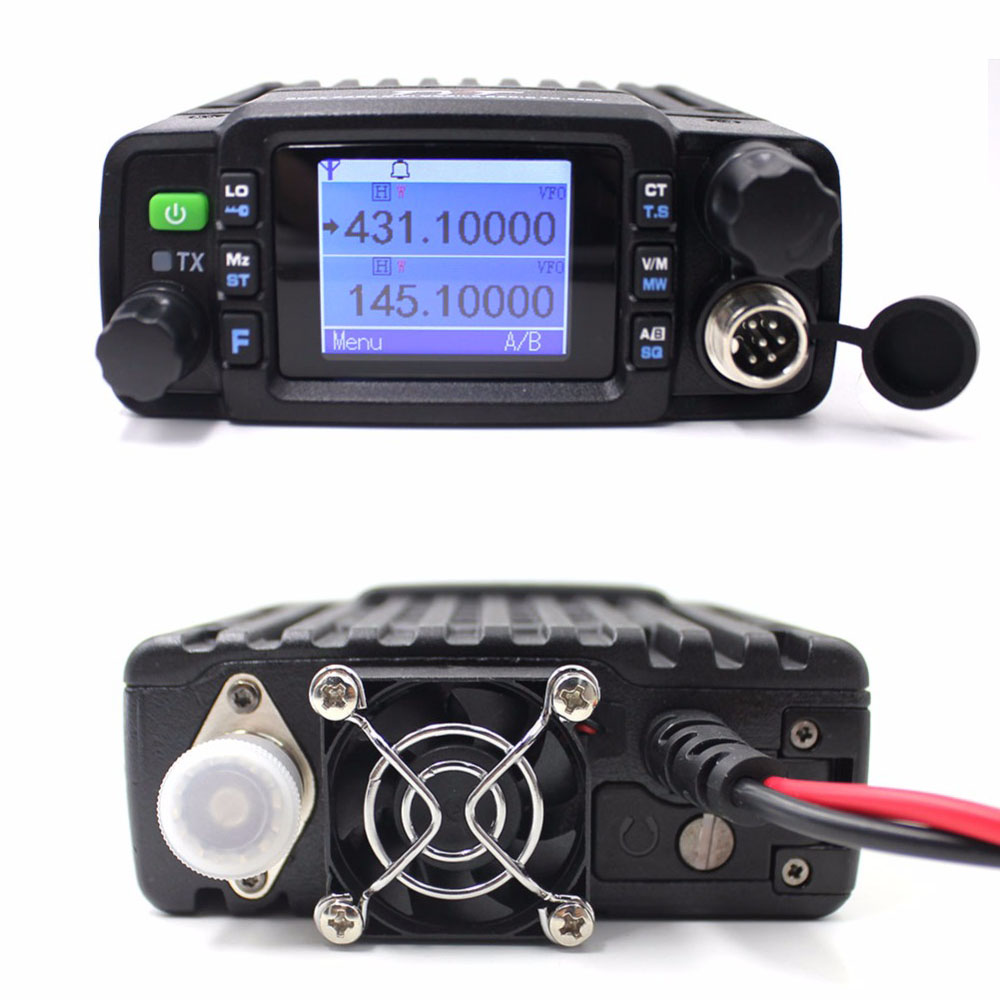

TYT TH-8600 - Mini Mobile Radio IP67 Waterproof 25W Dual Band 136-174 & 400-470Mhz.
Main Functions

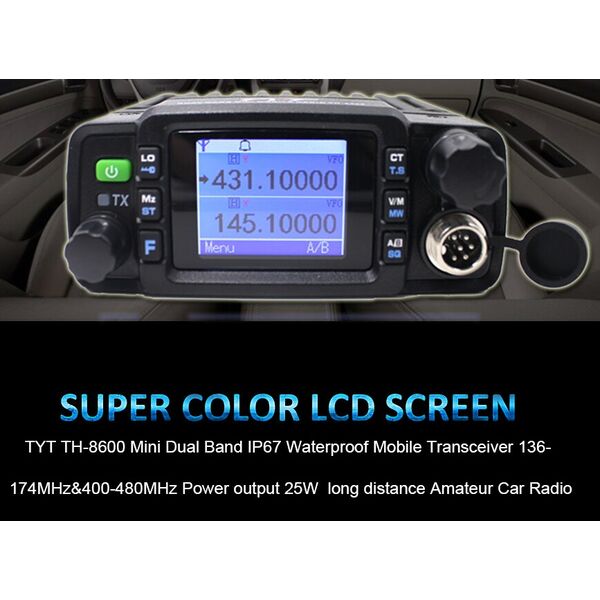

Large color LCD display
Dual band, dual display and dual standby
25W for VHF and 20W for UHF high power
200 storage channels

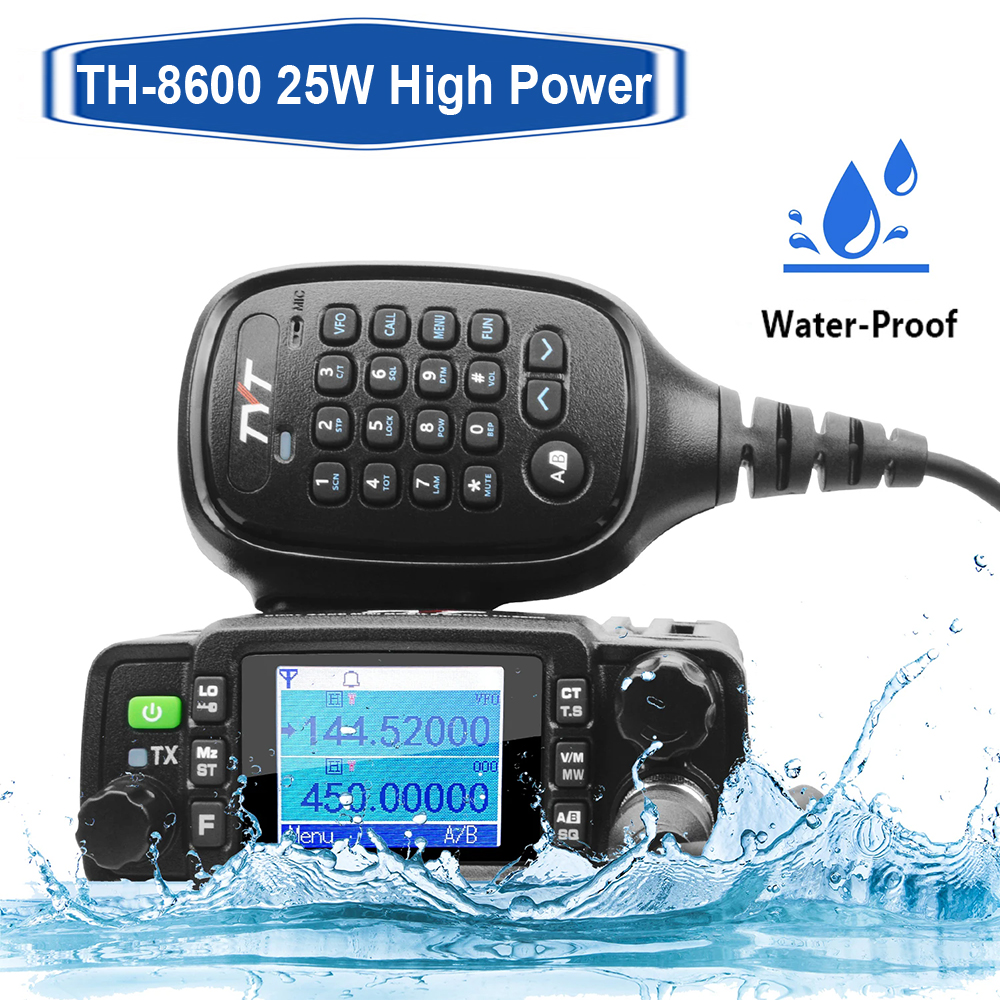

IP67 Waterproof
P1-P4 programmable functional keys

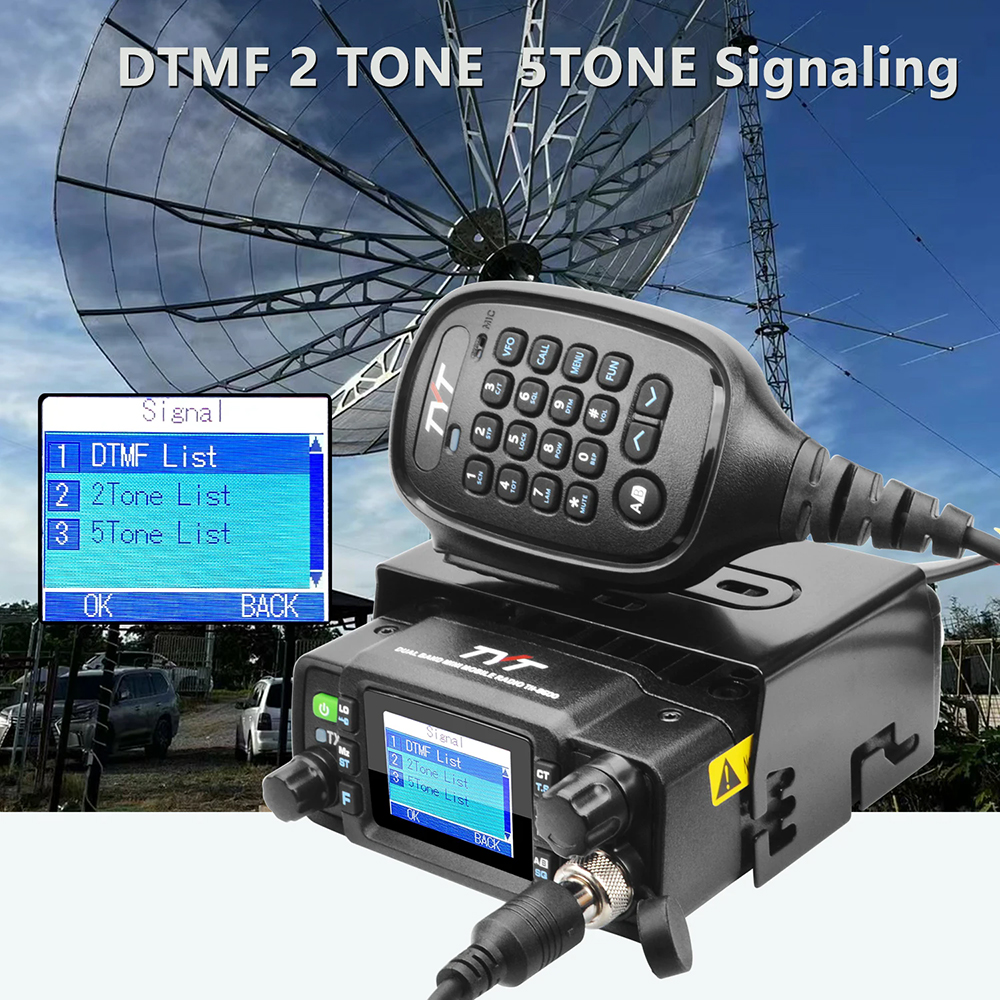

DTMF/2Tone/5Tone
CTCSS/DCS
1750Hz tone
Remote stun/kill and activate
|
Specification |
|
|
Item number |
TH-8600 |
|
General |
|
|

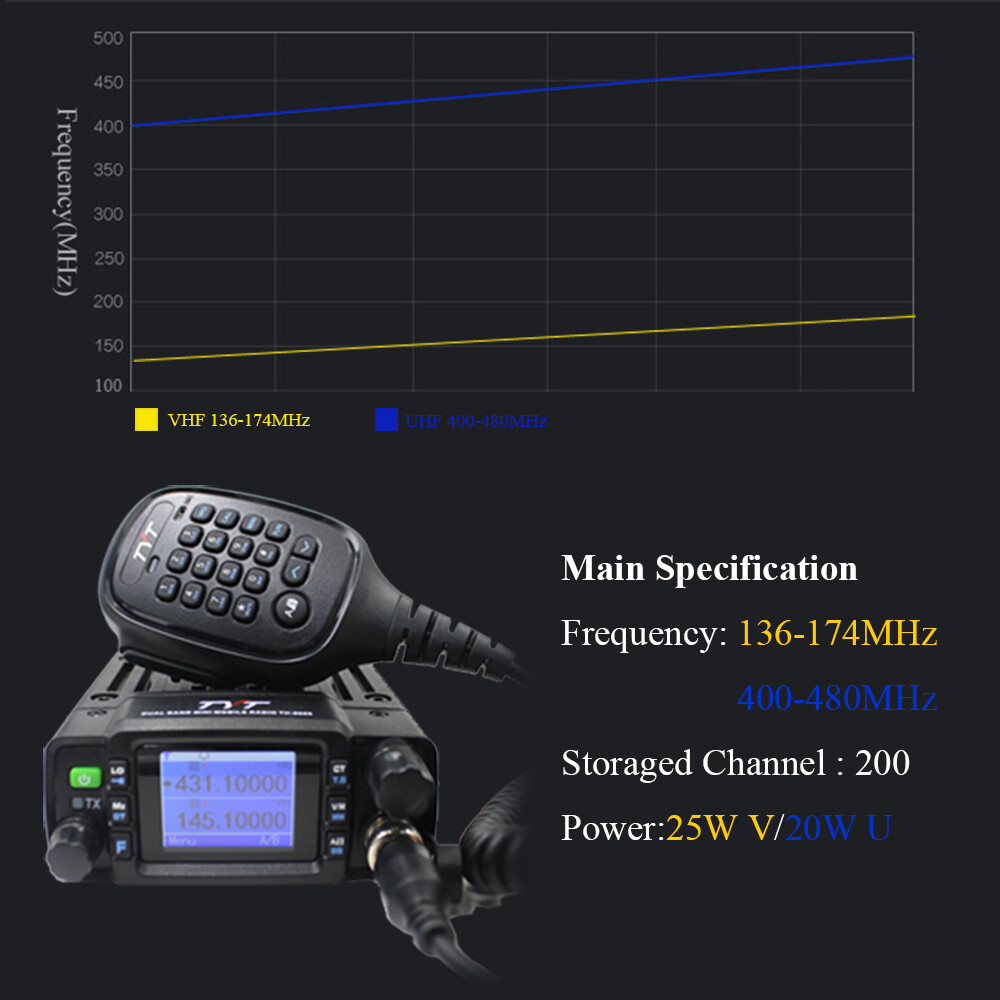

Frequency Range(MHz) |
144-148/420-450MHz |
|
Channel No. |
200 |
|
Frequency Stability |
±1ppm |
|
Operating Temperature |
-30℃～+60℃ |
|
Operating Voltage |
13.8V DC |
|
Dimension |
125*107*45mm |
|
Weight |
1.2kg |
|
Transmitter |
|
|
Output power |
VHF25W/UHF20W |
|
Transmitting Current |
4A*13.8V |
|
Standby Current |
0.2A*13.8V |
|
FM Modulation |
Wide band:16K0F3E |
|
Narrow band:11 K0F3E |
|
|
Modulation distortion |
＜5% |
|
FM Hun and Noise |
≥45dB*25KHz |
|
Adjacent Ch. power |
≥60dB*12.5KHz |
|
Audio response |
+1~-3dB |
|
Receiver |
|
|
Sensibility |
0.2μV |
|
Adjacent Ch. Selectivity |
60dB*12.5KHz |
|
Intermodulation |
≥60dB/≥65dB |
|
Spurious Rejection |
≥70dB |
|
Audio response |
+1~-3dB |
|
RF Sensitivity |
-122dbm(12db SINAD) |
|
Audio Distortion |
<5% |
|
FM Hun and Noise |
≥45dB*25KHz |
|
Rated audio |
4W |
Unit contain
1 x TH-8600 IP67 Mobile radio
1 x Power cable
1 x Hand-held mic
1 x install bracket and screw set
1 x User's manual in EN
